Stable and Durable Attachment for High Reliability and Long Life

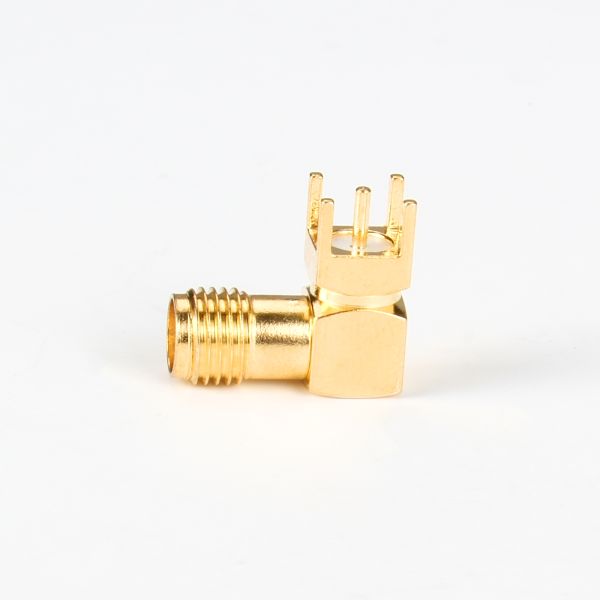

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max
Product descriptions from the supplier
Overview
● PCB Mounting Wifi Antenna Connector
● RF signal connection
Features:
● Enhanced electrical conductivity ● Oxidation resistance, corrosion resistance, environmental protection and safety
● Brass/Gold plating ● Stable performance and strong durability ● High reliability, long life
| Product performance |
| Model | SMA-KE-14.5 |
| Vibration | 100m/s2 (10~500Hz) |
| Impedance | 50 OHM |
| Frequency Range | DC – 11GHz |
| Working Voltage | 2700V max |
| Break-down Voltage | 4000V rms @ sea level |
| Contact resistance | ≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contact |
| Average power | 3KW max |
| Insulation resistance | ≥10000M OHM |
| VSWR | ≤ 1.10 |
| Durability (mating) | ≥500 (cycles) |
| Temperature range | -40~+85°C |
| Material | Brass |
| Size | Leg length 14.5MM Teeth length 8.5MM 1.7MM spacing |
