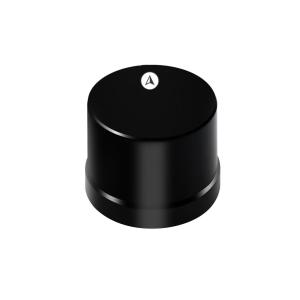

China A High-precision RTK Receiver with Built-in Spiral Antenna and Built-in Electronic Compass, Suitable for Direct Use on Drones. wholesale

A High-precision RTK Receiver with Built-in Spiral Antenna and Built-in Electronic Compass, Suitable for Direct Use on Drones.

Ask Latest Price

Video Channel

Place of Origin :Guangdong, China

Brand Name :OTW

Model Number :WT-4545-RK

Type :GNSS Module

Country of Origin :Shenzhen Guangdong, China

Brand :OTW

Chipset :XX

Application :UAV,Drone

Dimensions :47mm*36mm

Positioning Accuracy :1-2cm

Communication Interface :TTL

Operating mode :GPS+GLONASS+GALILEO+ BDS

Output Mode :UART+TTL

Baud rate :4800bps-921600bps,Default115200bps

NMEA messages :RMC,VTG,GGA,GSA,GSV,GLL

Update frequency :1Hz-20Hz(default 10Hz)

Voltage :3.6V to 6V

Power consumption :80mA/5.0V

MOQ :1

Price :$29.60-32.20

Contact Now

Add to Cart

View Product Description

Application：

● Location of base stations, power and communications ● Area measurement and distance measurement surveying and mapping products ● Vehicle positioning, personnel positioning, vehicle afterloading, etc ● Lawn mowers, farming machines, drones and other fields ● Positioning and measurement in complex environments and high-speed motion scenarios ● Intelligent Internet of Things, intelligent driving, etc

Features：

● Multi-system, can synchronously receive GPS/BDS/GLONASS/GALILEO four system dual frequency ● RTK algorithm ● Ultra-high precision, can achieve centimeter-level positioning ● Low cost, low power consumption ● Fast positioning

Module performance
Model	WT-4545-RK
Receiver type	BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1,E5a
Arithmetic	Integration RTK
Agreement	NMEA/UBX
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	128
Sensitivity	Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 28seconds
Hot start	Average 1 seconds
Accuracy	Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
18Max Height	50000m
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	0.25 Hz -10 Hz
Positioning mode	A-GNSS，RTK
Port
Port	UART/TTL
Interface
	GH 1.25 (spacing 1.25mm, 8-pin) with locking base

Power supply
Voltage	3.6V~6V
Power Consume	Running mode: 103mW@1.8V, Standby mode: < 20μW
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃

Company Profile

Shenzhen Anzewei Technology Co., Ltd. is a scientific and technological company integrating the R & D, production, sales and service of wireless positioning communication products, semi-finished products, finished products and supporting terminals. it has many international well-known enterprises in-depth cooperation resources and a number of elite and senior R & D and design teams.
We always take customer demand as the original strategy, providing wireless and portable high-end consumer electronics solutions, specializing in navigation, positioning, tracking, timing, communications, wireless connections and other professional products, semi-finished products and products, mainly centimeter-level positioning terminals, wearable children's smartwatches, pet track.
